Mobil

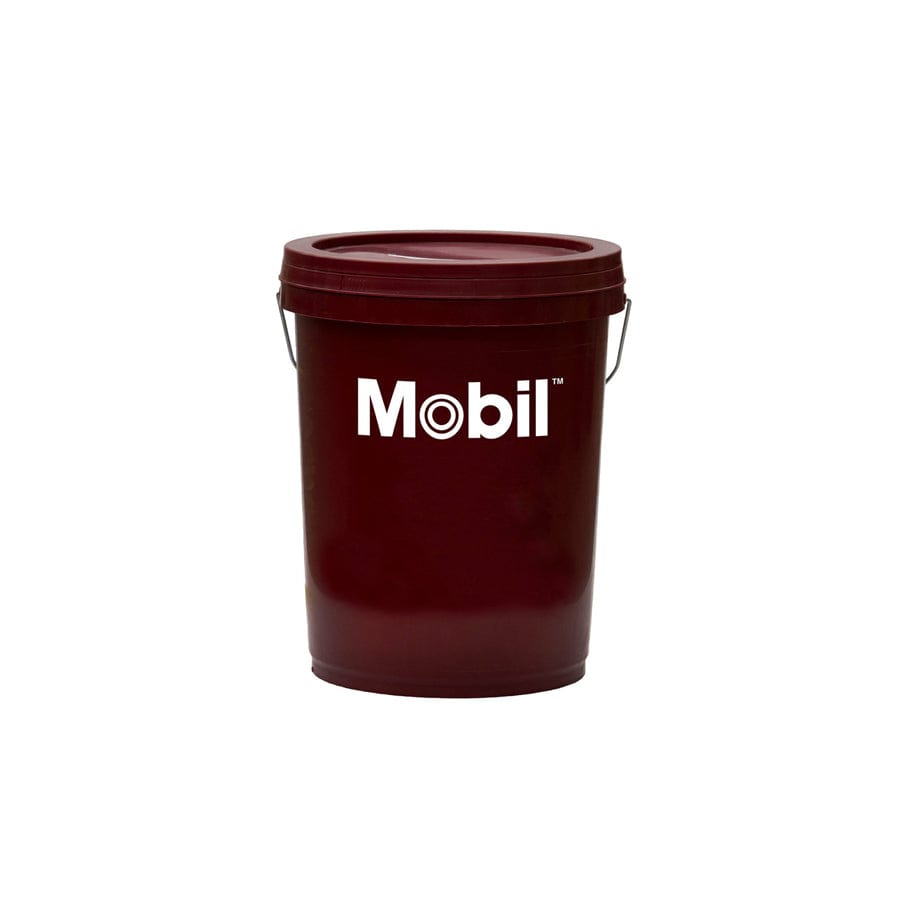

Mobil ATF 3309 PAIL 20Ltr

Stock:
Regular price $170.00
Regular price $0.00 Sale price $170.00
SPRING SALE
Price Match
  • Mobil ATF 3309 is an exceptionally high performance lubricant that meets original equipment manufacturers€™ specifications for use in certain slip-controlled lock-up automatic transmissions.



Features and Benefits

Advantages offered by Mobil™ Multi-Vehicle ATF over transmission fluids of lower quality are:

Long fluid life and long transmission life

Exceptional oxidation stability and resistance to chemical deterioration

Excellent flow properties at low start-up temperatures and high operating temperatures

Excellent lubricating characteristics for quiet operation, smooth shifting, and excellent wear protection

Excellent viscosity stability (high viscosity index) to help assure adequate lubrication without excessive thinning in severe high-temperature service or thickening at low starting temperatures

Dependable protection against rust and corrosion



Specification and Approvals

This product meets or exceeds the requirements of:

JASO 1-A-LV-15



Specification and Approvals

Property

Density, 15.6C, g/cm3, ASTM D4052

0.85

Pour Point, °C, ASTM D97

-48

Flash Point, Cleveland Open Cup, °C, ASTM D92

218

Kinematic Viscosity @ 40 C, mm2/s, ASTM D445

33

Kinematic Viscosity @ 100 C, mm2/s, ASTM D445

6.4



Applications

Mobil™ Multi-Vehicle ATF meets the needs of a broad range of transmission designs and power steering applications. Mobil™ Multi-Vehicle ATF is not recommended for use in CVT or DCT transmissions.

Mobil™ Multi-Vehicle ATF is recommended by ExxonMobil as suitable for use in many automatic transmission applications, power steering applications, and vehicle manufacturers including:

€¢Allison: C4

€¢ATF: Esso LT 71141, Shell 3353, Shell 134, JWS 3309, Mobil ATF 3309, Shell 3403-M115, Shell M-1375.4, Shell LA 2634, Shell L12108 , Texaco ETL 7045E, Texaco ETL 8072B, Texaco N402, ZF Lifeguardfluid 6, ZF Lifeguardfluid 8, ZF Lifeguardfluid 9

€¢Bentley: P/N PY112995PA

€¢BMW/MINI: ATF-3+, P/N 81 22 9 400 272/275, P/N 81 22 9 407 858/859, P/N 83 22 0 024 249/359, P/N 83 22 0 026 922, P/N 83 22 0 142 516, P/N 83 22 0 397 114, P/N 83 22 0 402 413, P/N 83 22 0 403 248, P/N 83 22 0 403 249, P/N 83 22 2 152 426, P/N 83 22 2 289 720, P/N 83 22 2 163 514, P/N 83 22 2 305 396/397, P/N 83 22 2 355 599, P/N 83 22 7 542 290, P/N 83 22 9 407 765, P/N 83 22 9 407 807

€¢Chrysler/Dodge/Jeep: ATF+ , ATF+2, ATF+3, ATF+4, AS68RC ATF, MB236.12, P/N 05127382AA, P/N 68043742AA, P/N 68157995AA/AB / 68218925AA, SP-III

€¢Mercedes/Daimler: MB 236.10, MB 236.11, MB 236.12, MB 236.14, MB 236.15, MB 236.41, MB 236.5

€¢Ford/Lincoln/Mercury: P/N XT-10-QLV [MERCON LV], P/N XT-2-QDX [MERCON], P/N XT-2-QSM [Syn], P/N XT-5-QM or -DM [MERCON V], P/N XT-6-QSP or -DSP [MERCON SP], P/N XT-8-QAW [Premium], P/N XT-9-QMM5 [FRN5], WSS-M2C922-A1

€¢GM/GMC/Opel/Saturn: AW1, DEXRON II, DEXRON IID, DEXRON IIE, DEXRON IIIG, DEXRON IIIH, DEXRON VI, P/N 19 40 700, P/N 19 40 767, P/N 21005966 Transaxle, P/N 22717466, P/N 88863400, P/N 88863401, P/N 88900925, P/N 9986195, T-IV, Type A Suffix A

€¢Honda/Acura: DW-1, Z-1, ATF Type 3.0 (08200-916-A), ATF Type 3.1 (08200-9017)

€¢Hyundai/Kia: ATF Red-1K, Genuine ATF, JWS-3309 T-4, NWS-9638 T-5, P/N 040000C90SG, P/N UM040 CH20 Red-1 , SP-II, SP-III, SP-IV/SPH-IV, SP-IV-M, SP-IV-RR

€¢Idemitsu: ATF HP, K17

€¢Isuzu: ATF II, ATF III, Genuine ATF, P/N 08200-9001

€¢Jaguar: 02JDE 26444, Fluid 8432, JLM 20238, JLM 20292, JLM 21044, K17, WSS-M2C922-A1

€¢Land Rover: AW1, P/N 023288/023289, P/N TYK500050, P/N LR0022460: LV

€¢MAN: 339A

€¢Maserati: P/N 231603

€¢Mazda: F-1, FW 6A EL, FW 6AX EL, FZ, JWS3317, M-5, P/N XT-9-QMM5, M-III, Type T-IV

€¢Mitsubishi: ATF-J2, Dia Queen ATF-J3, Dia Queen ATF-PA, SP, P/N MS991156, SP-II, Diamond SP-III, SP-IV

€¢Nissan/Infinity: 402, Matic-D, Matic-J, Matic-K, Matic-S, Matic-W

€¢Porsche: P/N 000 043 204 41, P/N 000 043 205 09, P/N 000 043 205 28, P/N 000 043 304 00, P/N 999 917 547 00 (A2)

€¢PSA Peugeot Citroën: P/N Z 000169756

€¢Renault: Matic D2

€¢Renk: Renk Genuine Oil

€¢Saab: 3309 - T-IV, P/N 93 165 147 - AW-1

€¢SSANG YONG: DSIH 5M-66

€¢Subaru: ATF-HP, P/N K0140Y0700

€¢Suzuki: 3314, 3317

€¢Toyota/Lexus/Scio: Scion FZ, Type D-II, Type T, Type T-III, Type T-IV, Type WS (JWS 3324)

€¢Volkswagen/Audi: G 052 025 A2, G 052 055, G 052 162 (-A1, -A2), G 052 533, G 052 990 (A2), G 055 005 (-A, A2), G 055 025 (A2), G 055 540 (A2), G 060 162 (A1, A2, A6), G US 000 162

€¢Volvo: AW1, P/N 1161521, P/N 1161540 / 1161640

€¢Volvo: P/N 31256774, 31256775

€¢ZF: TE-ML 11A, TE-ML 11B

Always check your owner's manual and/or warranty for the required or approved type of ATF, as applicable. Good maintenance practice dictates that automatic transmissions be checked for proper fluid levels at regular intervals, and that the fluid be drained and replaced at intervals recommended by the manufacturer. Some manufacturers recommend more frequent changes of transmission fluid under severe driving conditions such as those that occur in heavy traffic, in hot weather, or when pulling a trailer.

Mobil™ Multi-Vehicle ATF recommendations are based on a combination of independent field and laboratory testing. ExxonMobil recommends Mobil™ Multi-Vehicle ATF in a broad range of transmissions. The list of manufacturers and specifications above is just a sample of applications where ExxonMobil supports the use of Mobil™ Multi-Vehicle ATF. It is important to note that the respective vehicle manufacturers have neither evaluated nor approved Mobil™ Multi-Vehicle ATF in the applications identified in this document.



Please compare with your original manufacturer's oil specification which can be found in your vehicle manual. Feel free to contact us if you require any assistance!



To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number or the last 7 digits of your VIN. Simply enter your car details prior to checkout.
